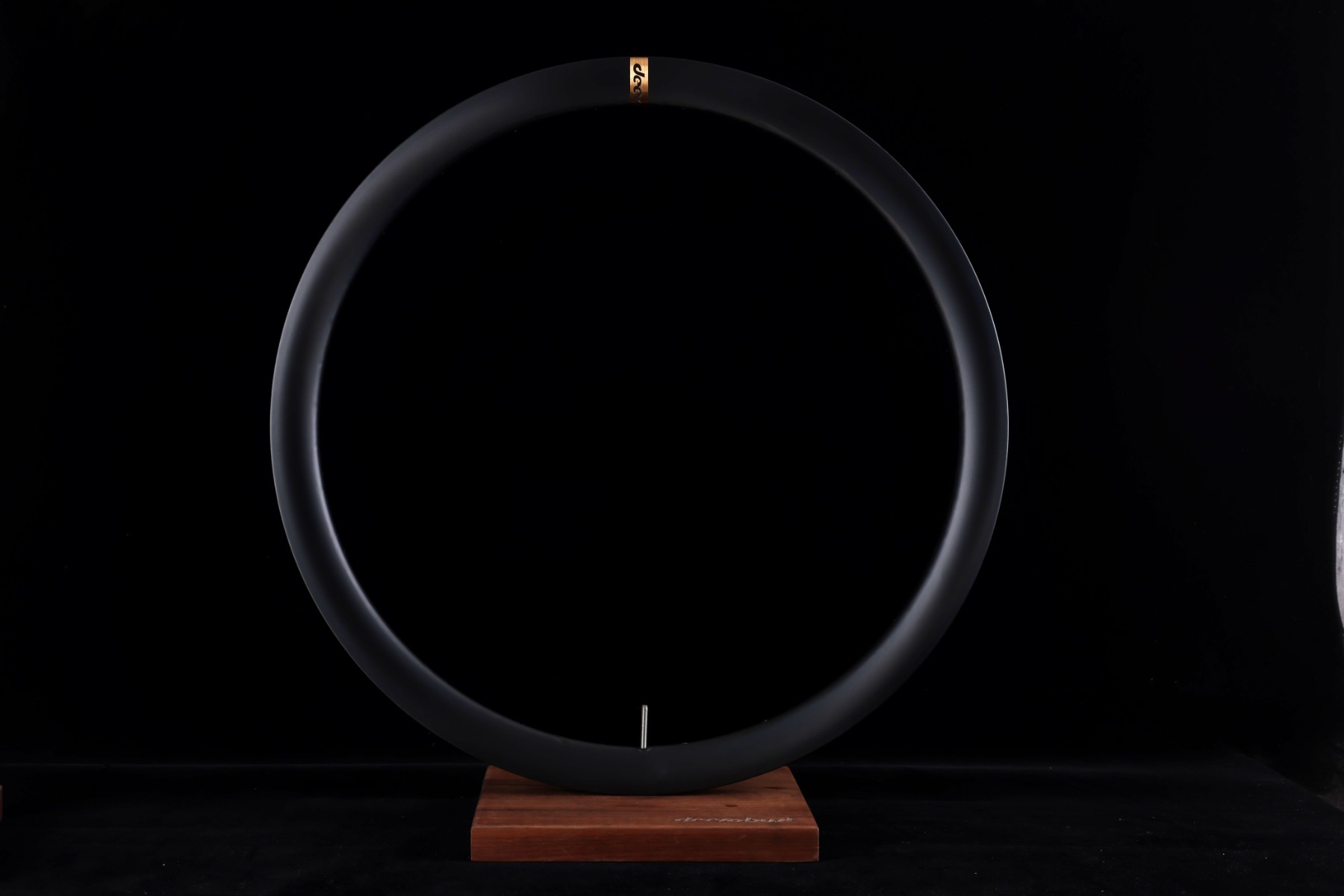

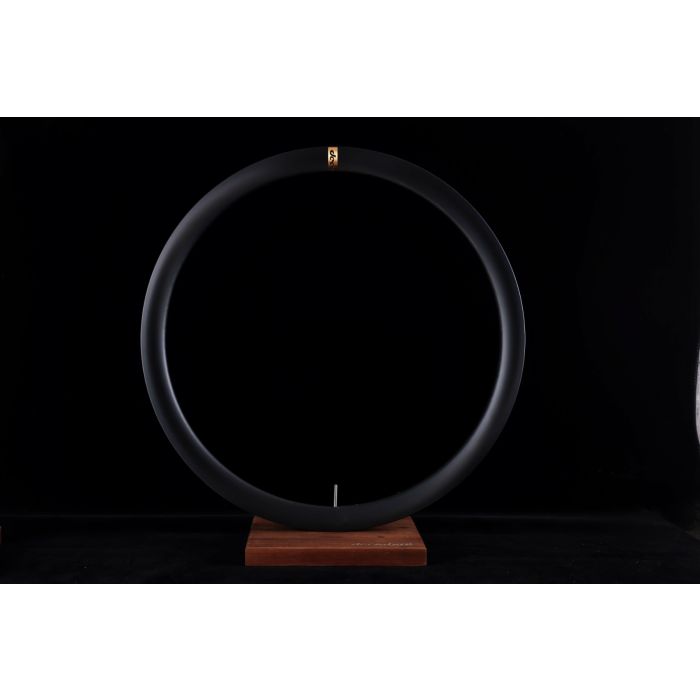

400g 700C Carbon Rims Disc 30mm Wide 45mm Deep Asymmetric GAR945
- 45 Deep丨30 Wide External
- 22 Wide Internal Hook
- 24 Wide Internal Hookless
- Tubeless Clincher
- All Road/CX/Gravel
174
- RIMS
- Material Carbon
- Tire Compatibility Tubeless 丨 Tubeless-ready 丨 Clincher
- Size 700C
- Depth 45mm
- Internal/ External Rim Width Hook: 22mm/30mm，Hookless: 24mm/30mm
- ERD 549mm (nipple head is not included)
- Spoke Hole Diameter 4.5mm
- Valve Hole Diameter 6.5mm
- Assembly Hole Diameter 8mm
- Bead Type Hook丨Hookless
- Weight Version Super Light 丨 Lightest
- Weight Details(Hook) Super Light: 440g+/-15g 丨 Lightest: 400g+/-15g
- Weight Details(Hookless) Super Light: 440g+/-15g 丨 Lightest: 400g+/-15g
- Rider weight limit 120kg/ 265lbs for Flyweight Version and 90kg/ 198lbs for Lightest Vesion
- Spoke Tension 100~110kgf for front disc side and 120~130kgf for rear drive side
- Max Tire Pressure Hook: 110psi/ 7.58bar丨Hookless: 90psi/6.2bar
- Aero Optimized Tire Size Hook: 25c-28c 丨 Hookless: 27-28c
- Tire Size Range Compatibility Hook: 25~48c Hookless:27c~50c
| Size | 700C/29er |
|---|---|
| Rim Profile | Asymmetric |
| Rim Depth | 41-60mm |
