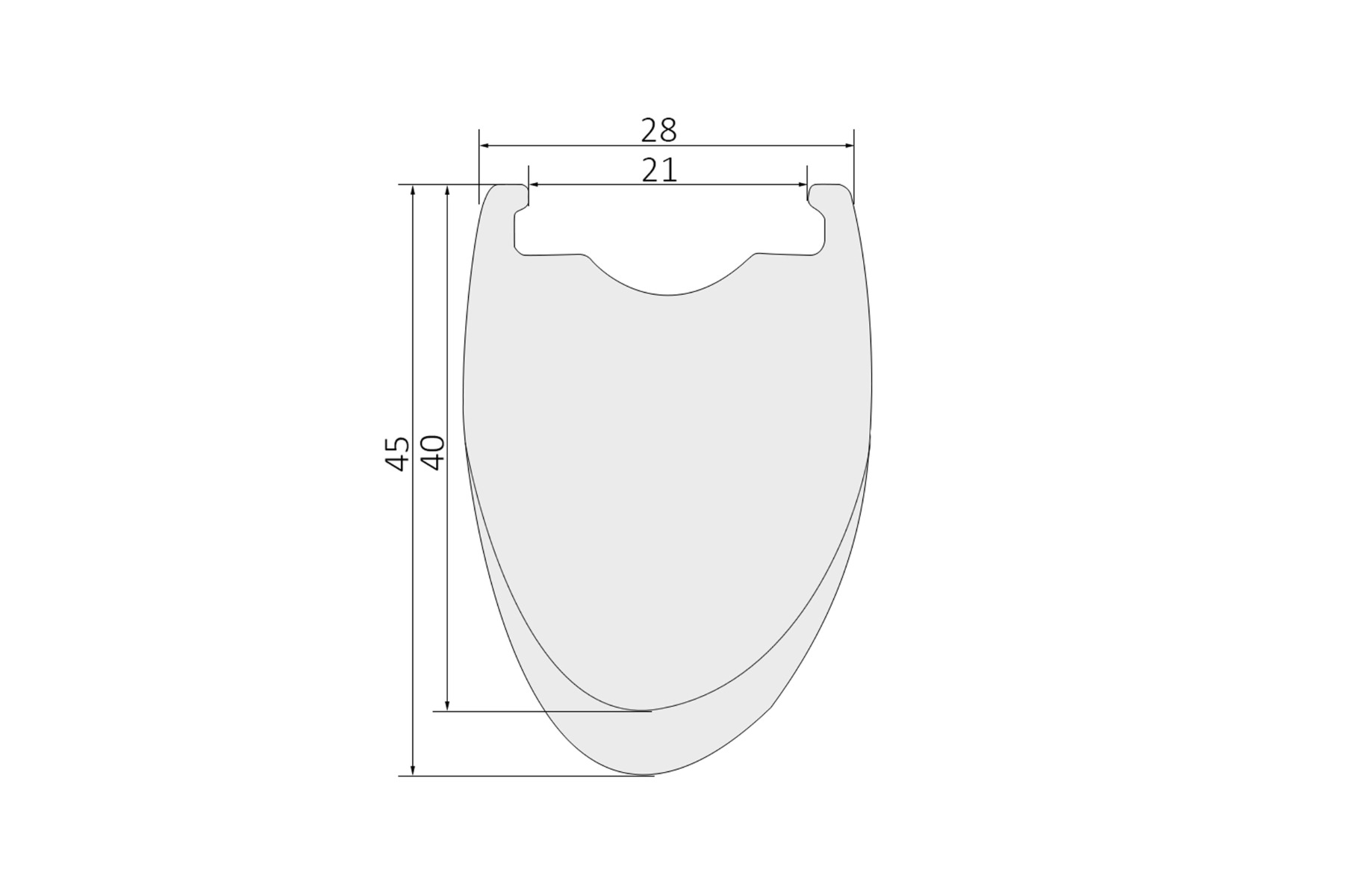

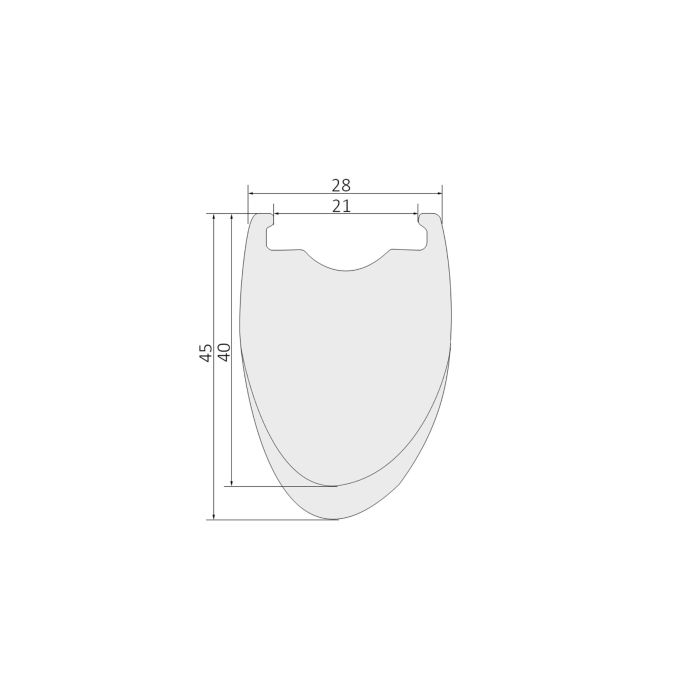

390g 700C Wavy Carbon Rims 28mm Wide 45mm Deep TC45A-28W Asymmetric
- 45 Deep丨28 Wide External
- 21 Wide Internal Hook
- Tubeless Clincher
- Rim Brake/ Disc Brake
- Road/CX/Gravel
174
- RIMS
- Material Carbon
- Tire Compatibility Tubeless 丨 Tubeless-ready 丨 Clincher
- Size 700C
- Depth 45mm
- Internal/ External Rim Width Hook: 21mm/28mm，
- ERD 549mm (nipple head is not included)
- Spoke Hole Diameter 4.5mm
- Valve Hole Diameter 6.5mm
- Assembly Hole Diameter 8mm
- Bead Type Hook
- Weight Version Super Light 丨 Lightest
- Weight Details(Hook) Super Light: 435g+/-15g 丨 Lightest: 390g+/-15g
- Rider weight limit 120kg/ 265lbs for Flyweight Version and 90kg/ 198lbs for Lightest Vesion
- Spoke Tension 100~110kgf for front disc side and 120~130kgf for rear drive side
- Max Tire Pressure Hook: 110psi/ 7.58bar
- Aero Optimized Tire Size Hook: 25c
- Tire Size Range Compatibility Hook: 23c~32c
| Size | 700C/29er |
|---|---|
| Rim Profile | Asymmetric |
| Rim Depth | 41-60mm |
