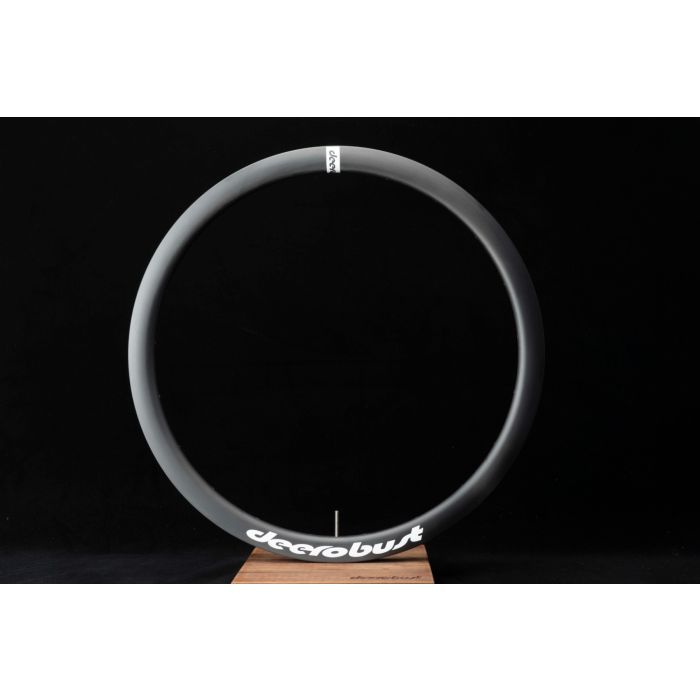

330g 700C Carbon Rims 40mm Deep 26mm Wide TC40-26
- 40 Deep丨26 Wide External
- 19 Wide Internal Hook
- 22 Wide Internal Hookless
- Tubeless Clincher
- Rim Brake/ Disc Brake
- Road/CX Bikes
170
- RIMS
- Material Carbon
- Tire Compatibility Tubeless 丨 Tubeless-ready 丨 Clincher
- Size 700C
- Depth 40mm
- Internal/ External Rim Width Hook: 19mm/26mm，Hookless: 22mm/26mm
- ERD 559mm (nipple head is not included)
- Spoke Hole Diameter 4.5mm
- Valve Hole Diameter 6.5mm
- Assembly Hole Diameter 8mm
- Bead Type Hook丨Hookless
- Weight Version Super Light 丨 Lightest
- Weight Details(Hook) Super Light: 400g+/-15g 丨 Lightest: 370g+/-15g
- Weight Details(Hookless) Super Light: 360g+/-15g 丨 Lightest: 330g+/-15g
- Rider weight limit 120kg/ 265lbs for Flyweight Version and 90kg/ 198lbs for Lightest Vesion
- Spoke Tension 100~110kgf for front disc side and 120~130kgf for rear drive side
- Max Tire Pressure Hook: 120psi/ 8.27bar丨Hookless: 90psi/6.2bar
- Aero Optimized Tire Size Hook: 25c丨 Hookless: 25c~28c
- Tire Size Range Compatibility Hook: 23c~32c丨 Hookless:25c~48c
| Size | 700C/29er |
|---|---|
| Rim Profile | Symmetric |
| Rim Depth | 20-40mm |
